Midwayrollforming

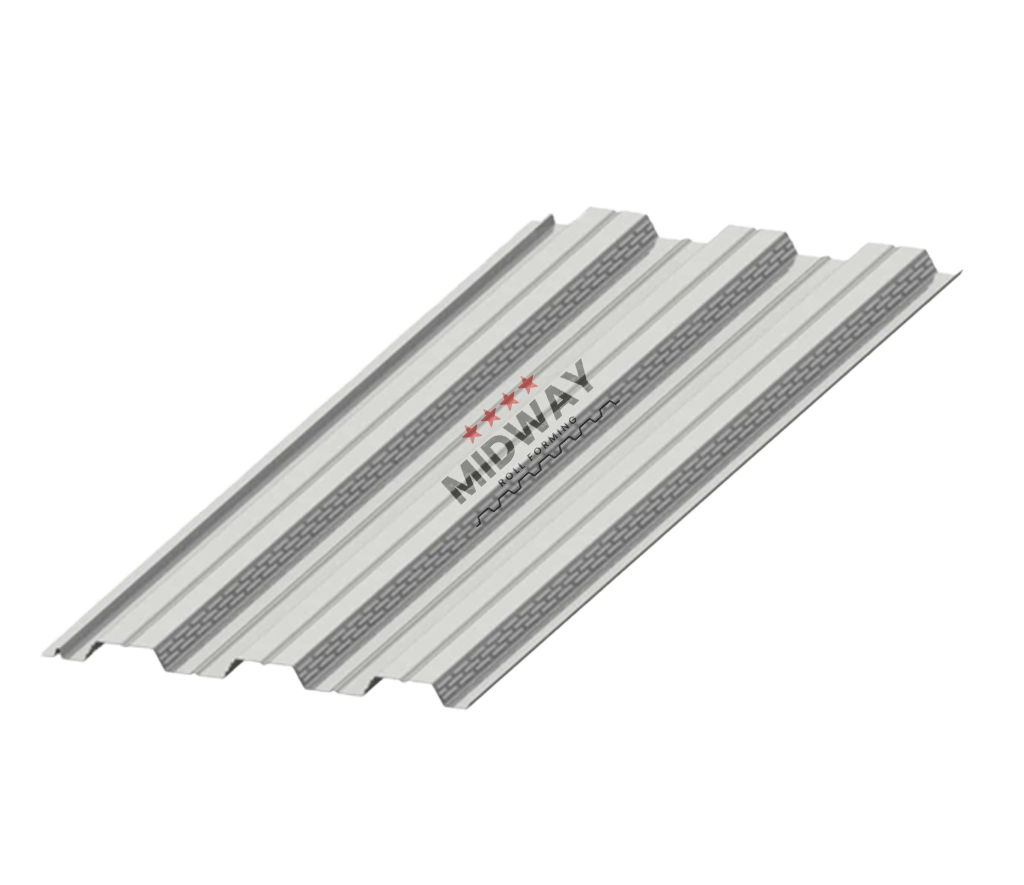

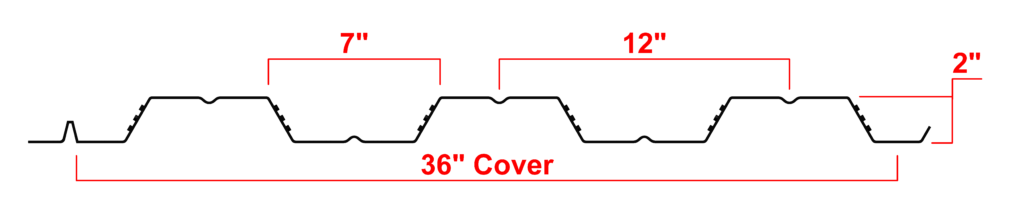

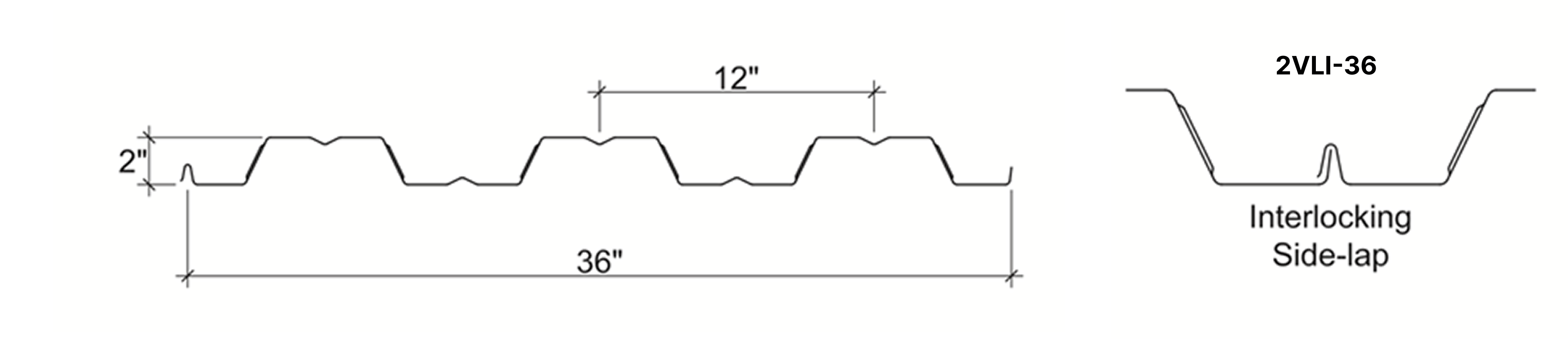

2″ Composite Steel Deck

Midway Roll Forming offers 2″ Composite Deck in 22, 20, 18, 16 gauge offering G60, G90 and painted finishes. All Composite deck is minimum standard yield strength of 50 ksi.

    Description

    2” composite floor deck panels are primarily used for pouring concrete slabs. Composite floor decks have embossments that grip the concrete slab and they are typically reinforced with rebar or wire mesh which creates a strong bond with the concrete floor. Composite steel deck is a permanent concrete form and provides positive reinforcement while it eliminates the time and cost of wood forming.

    Description

    We provide high-quality floor decking at competitive prices, with the 2″ Composite Metal Deck being a durable and easy-to-install solution for your metal floor decking needs. Acting as a platform before and during concrete placement, the composite deck offers positive reinforcement for the concrete slabs, eliminating the need for wood forms. This versatile floor deck is commonly used in commercial buildings, bridges, porches, parking garages, storage facilities, and more. For additional technical engineering information, please visit www.sdi.org

    Attachment Pattern:

    Your project Engineer will determine your attachment requirements for your design loads, building code and project requirements. The following standard 1.5 Composite Deck attachment pattern has been provided as a minimum recommendation for the product specified. The attachments should be made to from deck to support, deck sidelap to deck sidelap and seck to perimeter supports.
